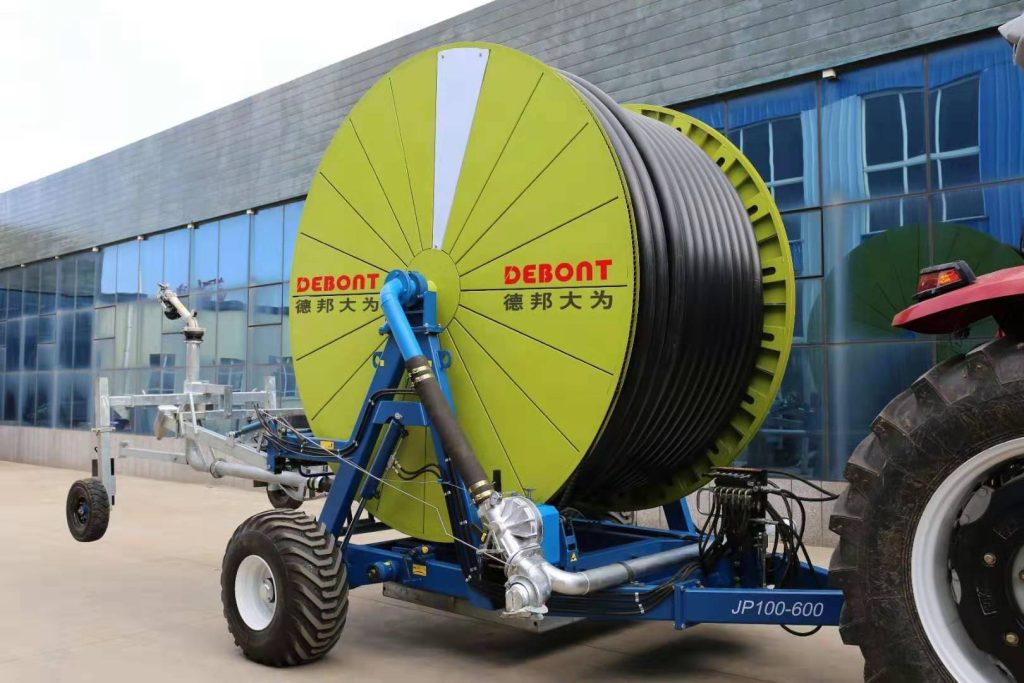

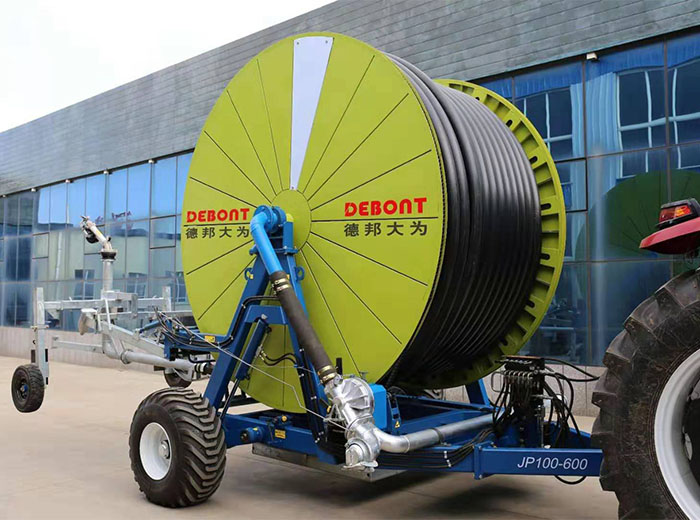

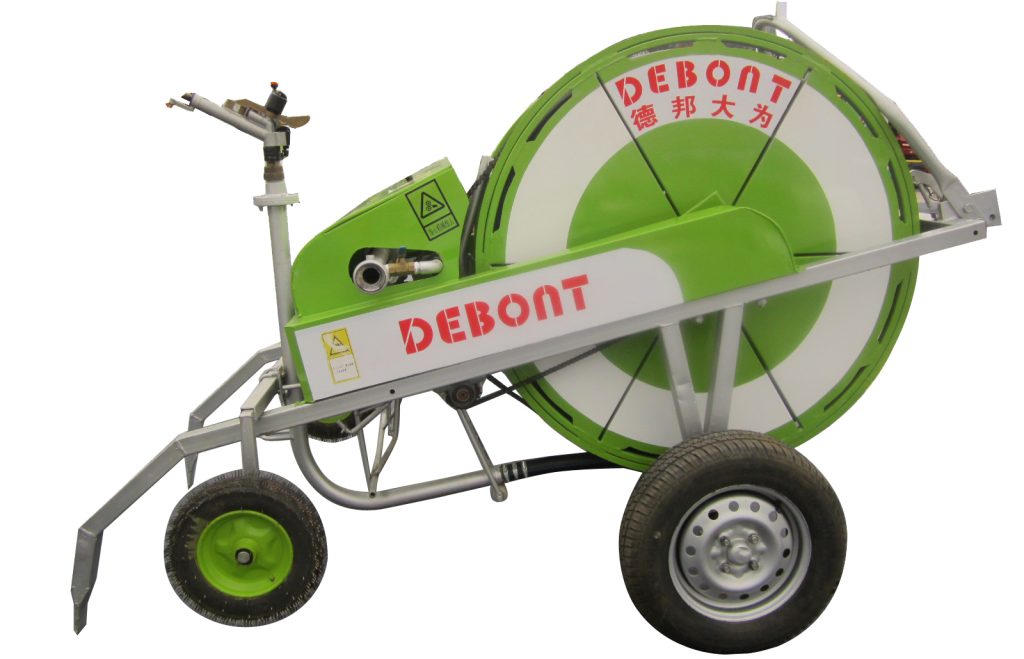

JP series reel-type sprinkler is an irrigation machine, which winds the traction PE pipe on the winch, drives the water turbine to rotate by the pressure water of sprinkler irrigation, drives the winch to rotate by the speed change device, and drives the sprinkler truck to move and spray automatically. It has the advantages of convenient movement, simple operation, labor-saving and time-saving, high irrigation precision, good water-saving effect and strong adaptability, and can effectively provide the water needed by crops and increase the yield.
JP series reel sprinkler can not only irrigate a large area of farmland, but also control the water quantity according to the water demand to meet the different requirements of users for sprinkler irrigation, which is the best choice for water-saving irrigation of farmland. At the same time, it is also suitable for spraying operations in power plants, ports, sports fields, urban green spaces and other occasions that need irrigation and dust prevention.
JP series reel-type sprinkler is an irrigation machine, which winds the traction PE pipe on the winch, drives the water turbine to rotate by the pressure water of sprinkler irrigation, drives the winch to rotate by the speed change device, and drives the sprinkler truck to move and spray automatically. It has the advantages of convenient movement, simple operation, labor-saving and time-saving, high irrigation precision, good water-saving effect and strong adaptability, and can effectively provide the water needed by crops and increase the yield.
JP series reel sprinkler can not only irrigate a large area of farmland, but also control the water quantity according to the water demand to meet the different requirements of users for sprinkler irrigation, which is the best choice for water-saving irrigation of farmland. At the same time, it is also suitable for spraying operations in power plants, ports, sports fields, urban green spaces and other occasions that need irrigation and dust prevention.
1. The JP series reel-type sprinkler irrigation machine mainly consists of a chassis, reel, PE pipe, water turbine, gearbox, speed compensation device and sprinkler truck. Its key components are water turbine, gearbox and PE pipe.
2. The working principle of the JP series reel-type sprinkler irrigation machine is to place the main machine on one side of the irrigation plot; use a tractor to drag out the water pipe wrapped around the main machine and the sprinkler truck connected to the water pipe to the plot. The other end is connected to a water source that reaches normal working water pressure, and the sprinkler truck starts spraying water to the farmland through the spray gun or truss cantilever sprinkler head; at the same time, the host uses the pressurized water to generate certain mechanical energy through the work of the water turbine, gearbox and transmission system. The kinetic energy starts to rotate the reel.
3. The rotation of the reel drives the water pipe to rewind from one end of the plot to the other end in the direction of the host. In this way, the reel is rotating, and the sprinkler truck walks back evenly at the set speed, spraying water while walking, until the entire plot of land is irrigated. When the sprinkler truck moves to the host position, the host can move the sprinkler truck to the host position. Lift and fix it on the host machine. At this time, the entire irrigation process is completed, the water source is cut off, and the equipment can enter the next plot for another irrigation.
4. The operation of the reel itself does not require additional power. It relies on the pressure water entering the system to complete all work.
5. A wide range of equipment selection from 40 series to 125 series.
6. The average service life of the complete machine is more than 10 years, and the life of the PE pipe is more than 15 years.
7. In terms of installation, it is simple to operate and safe to use.
8. In one irrigation cycle, the JP-75 single machine can control an area of about 300 acres, and the JP-50 single machine can control an area of about 130 acres.
serial | project | unit | index | ||
JP75-300 | JP75-400 | JP75-500 | |||
1 | PE pipe outer diameter | mm | 75 | 75 | 75 |
2 | PE pipe length | m | 300 | 400 | 500 |
3 | Effective spray length | m | 300 | 400 | 500 |
4 | Inlet pressure | mpa | 0.5-1.0 | 0.5-1.0 | 0.6-1.1 |
5 | Nozzle diameter | mm | 16-22 | 16-22 | 16-22 |
6 | Nozzle pressure | mpa | 0.25-0.5 | 0.25-0.5 | 0.25-0.5 |
7 | flow | m3/h | 15.5-34.3 | 15.5-34.3 | 15.5-34.3 |
8 | Water jet range | m | 27.6-43 | 27.6-43 | 27.6-43 |
9 | Width of irrigation zone | m | 47-74 | 47-74 | 47-74 |
10 | speed | m/h | 8-60 | 8-60 | 8-60 |
11 | strength | mm | ＞7 | ＞7 | ＞7 |
12 | Inter-layer velocity difference | % | ＜20 | ＜20 | ＜20 |
13 | Spraying uniformity | % | ＞85 | ＞85 | ＞85 |
14 | Overall dimensions | m | 5.2×1.8×2.62 | 5.4×1.8×3.05 | 5.2×2.3×3.4 |
15 | Excluding the spray car and tire size | m | 3.4X1.6X2.32 | 3.7X1.8X2.76 | 4.12X2.3X3.1 |
16 | weight | kg | 1400 | 1600 | 2100 |
17 | Weight (containing water) | kg | 2250 | 2680 | 3480 |
